ROSELAND THEATER
| Capacity: | Balcony & Main Floor – 1410 |
| Stage Dimensions: | 55’ wide x 30’ deep x 4’ tall |

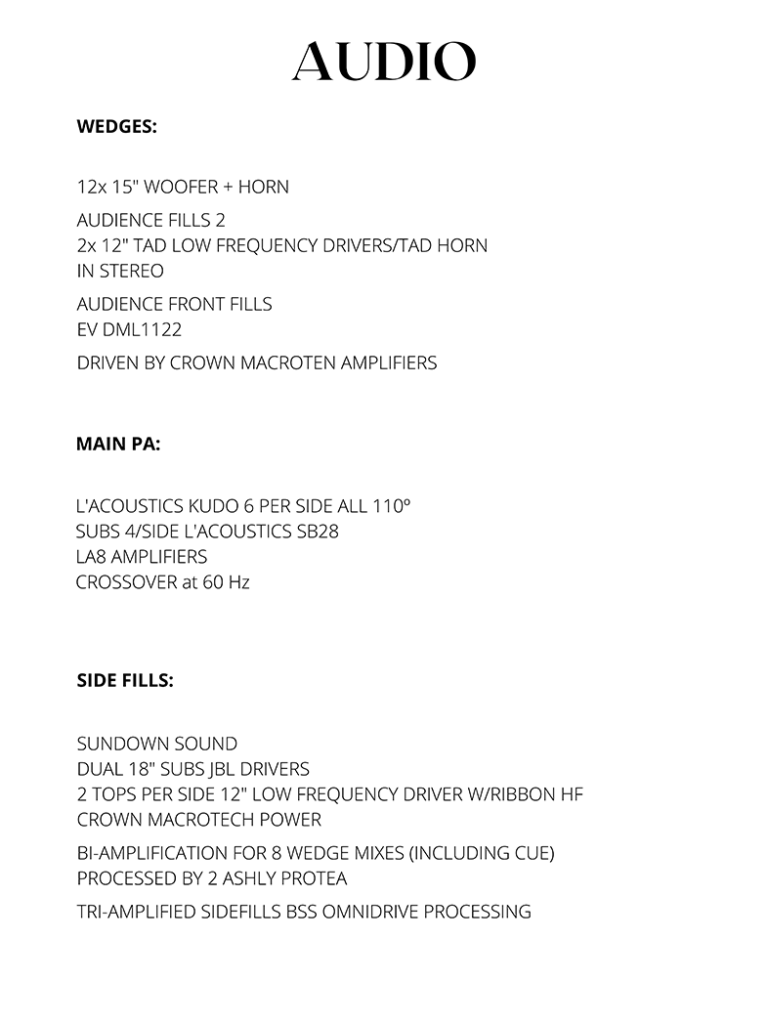

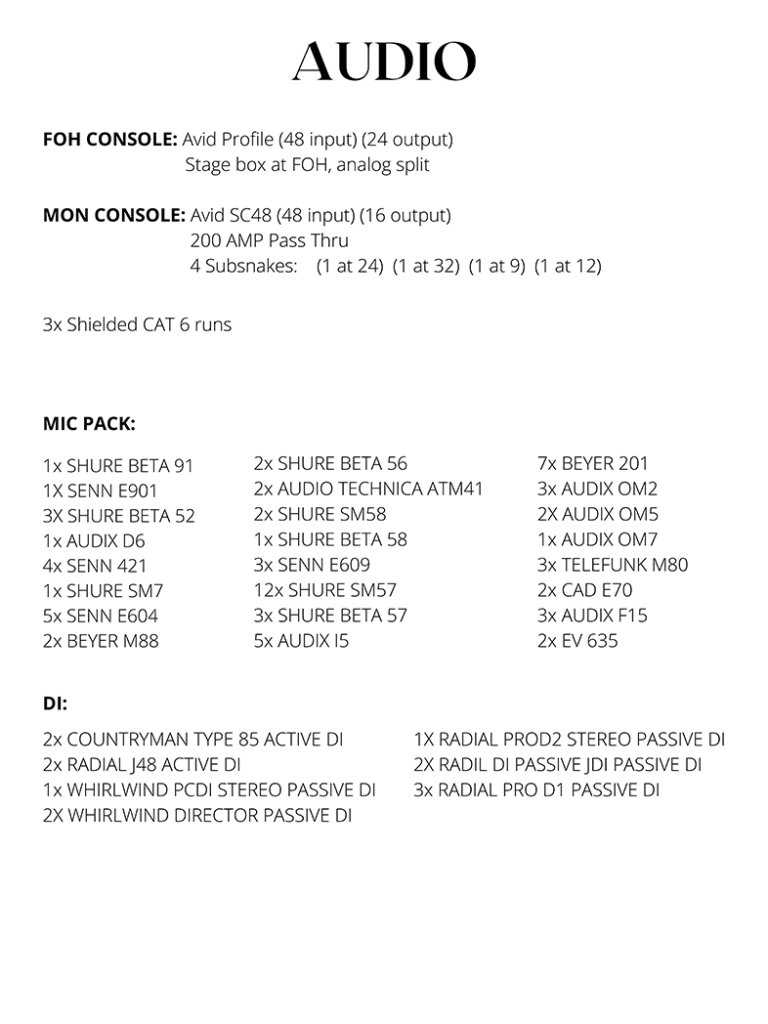

| Sound Specs: | Roseland Theater Audio Specs |
| Sound Wings: | 8’ wide x 10’ deep x 4’ tall; stage left and stage right |
| Power: | 1) 400 amps 3 phase 208 volt switches 2) 200 amps 3 phase 208 volt switches 3) 100 amps 3 phase 208 volt switches |
| Power Location: | Upstage right approximately 20’ off stage |
| Lights: | Avolites Pearl 2008 console, (12) Highbeam Technobeam scans, (6) Martin Mac 250 Entours, (2) Martin 3000 strobes w/ color scrollers, Martin Jem DMXZR24/7 hazer, 96 channel 2.4k dimmers, (120) 1K par 64, (14) Lekos, 8-Lite Blinders, and more! |
| Rigging: | Fixed Beams above false ceiling. Currently there are six 1000lb points. |
| Elevator: | 4’ wide x 10’ deep x 8’ tall freight elevator & 6.5’ wide x 4’ deep x 8’ tall passenger elevator |
| Production Office: | The Touring production office is off stage right down one flight of stairs. It is 15’ wide by 13’ deep and is equipped with tables, chairs, AC, Lights, a dedicated phone line, and WIFI. |
| Production Phone: | The dedicated phone number is 503.226.9193 |
| Parking: | The Roseland has a 100’ deep by 65’ wide parking lot with exclusive use on weekends and evenings. |
| Dressing Rooms: | Dressing rooms are located off stage right down two flights of stairs. Main Room: 34’ x 28’ 1st Private Room: 20’ x 13’. 2nd Private Room: 17’ x 13’. All three rooms have couches, tables, lamps for a living room feel. |
| Restrooms: | Restrooms are located on the dressing room floor. |
| Showers: | There are two shower stalls on the dressing room floor. |
| Laundry: | There is a washer and dryer available for use on the dressing room floor. |
| Main Stage Dimensions: | Roseland_Main Stage Dimensions |
| Main Floor Dimensions: | Roseland_Main Floor Dimensions |
| Main Floor Seating Chart: | Roseland_Main Floor Seating Chart |
| Main Floor Cabaret Seating: | Roseland_Main Floor Cabaret Seating |

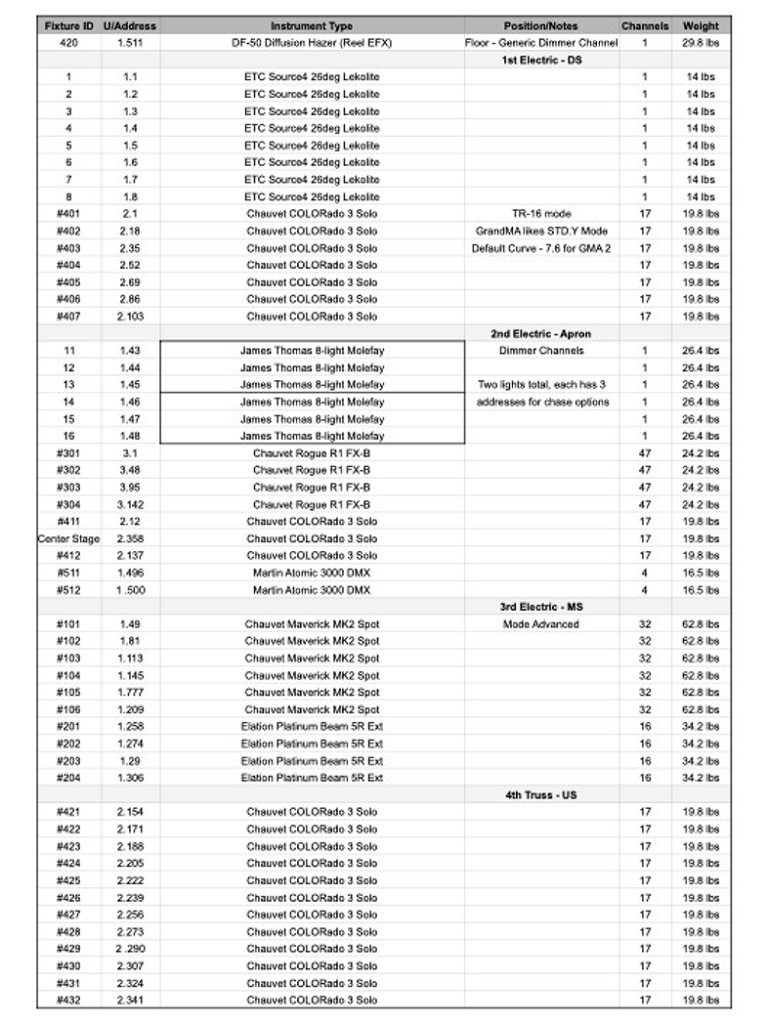

| Main Floor Lighting Chart: | Roseland_Lighting Chart Roseland_2.5 Patch See Lighting Setup Example 1 See Lighting Setup Example 2 |
| Balcony Seating Chart: | Roseland Balcony_Seating_ |
| 3D Performance Area: | Roseland_3D Performance Area |

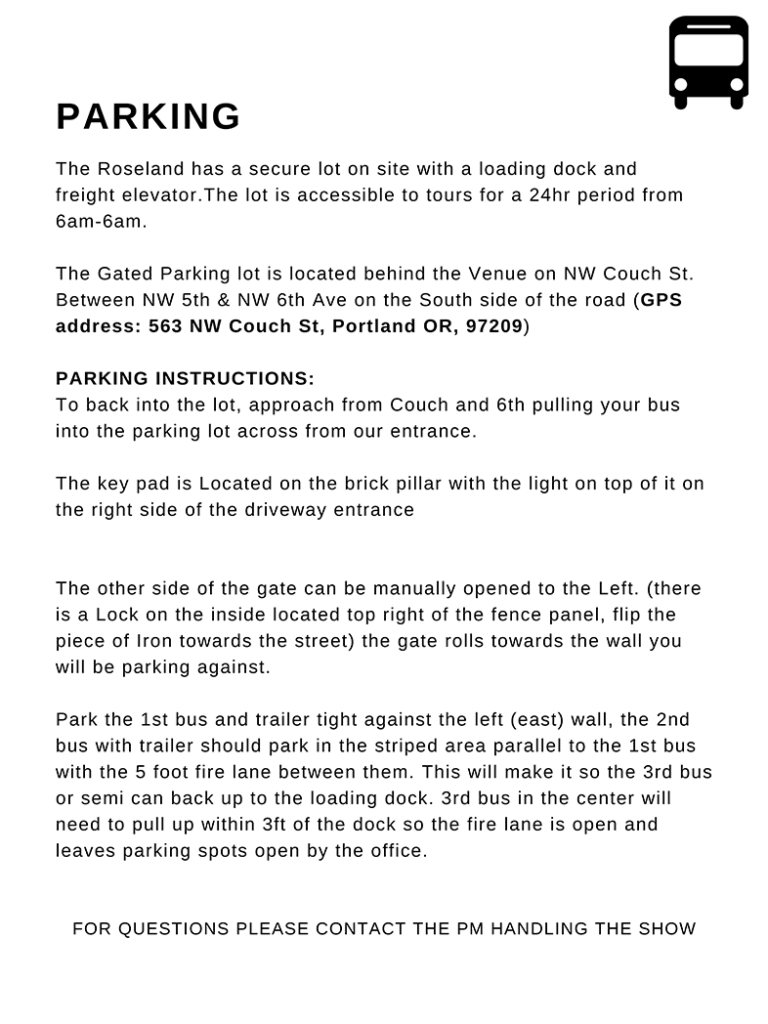

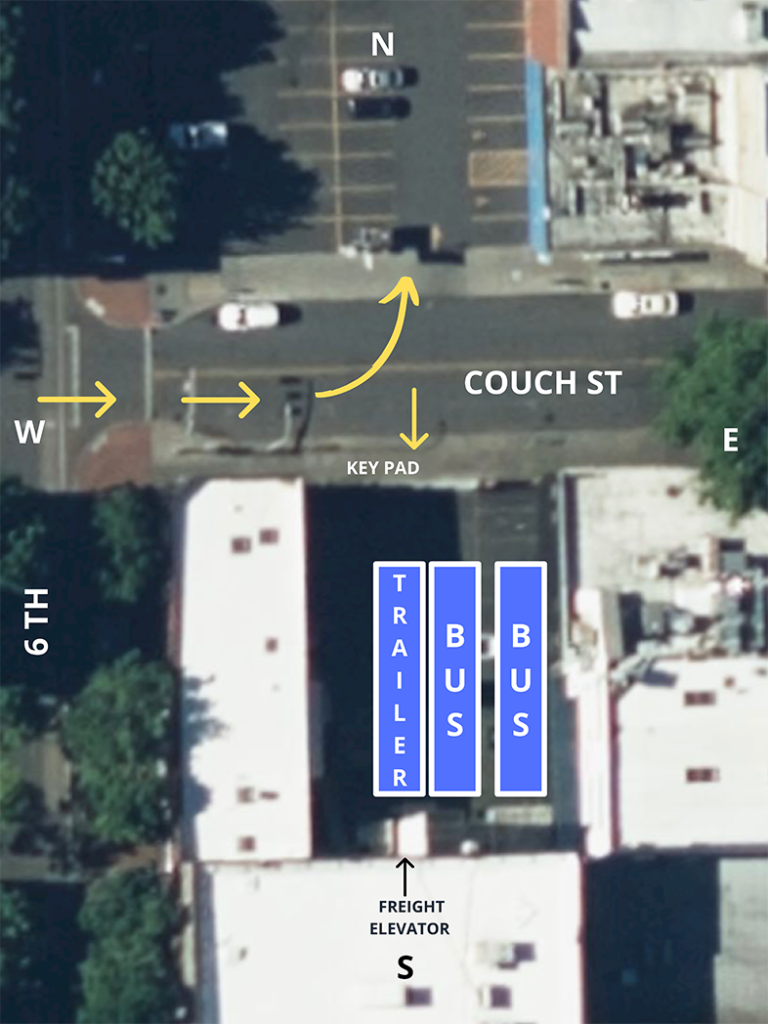

| Bus/Truck Parking Layout | Roseland_Bus &Truck_parking |
PETER’S ROOM
| Capacity: | 400 |
| Stage Dimensions: | 20′ wide x 16′ deep x 4′ tall |
| Sound System | Midas M32 Digital Mixing Console. Tablet mixing capable with installed wifi router. (4) Bag End Passive Wedge Monitors, (1) 3 way, bi-amped drum fill, w/1- 18″, w/ passive 1-15″, and 1-2″. See Main Room Specs for mic selection. Eastern Acoustics Works (EAW) (4) KF850, (4) SB850, Dolby Lake LP4D12 system processor. 2 Stacks Per side. XTA analog graphic, inline for FOH.32” snake, with split outputs available at Snake head, off stage right, Multiple stage drop snakes, and power drops. |
| Video Screen | 10′ x 14′ comes down from the ceiling (please note that this takes about 3′ of stage depth) |
| Power: | 1) 100 amps 3 phase 208 volt switches 2) Dedicated. No Access |
| Power Location: | Upstage right |
| Lights: | 24 par cans; 4 leko’s; 16 channel console, 2 scene console |
| Parking: | The Roseland has a 100′ x 65′ wide parking lot with exclusive use on weekends and evenings |
| Load In: | Load in through parking lot |
